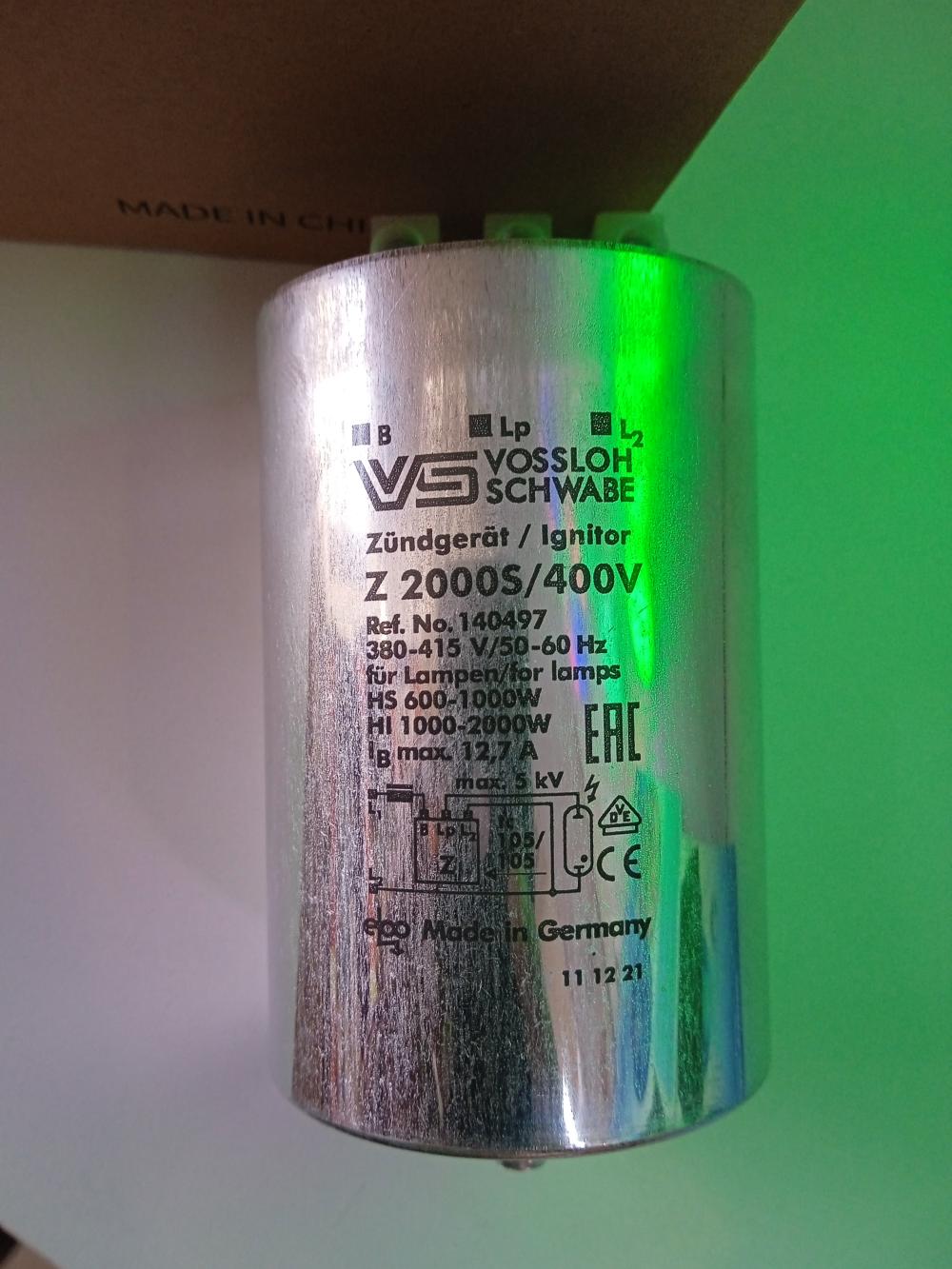

VS Z2000 S 400V IGNITOR 140497
Z 2000 S/400V Electronic superimposed ignitor for HI lamps.
Electronic superimposed ignitor for HI lamps up to 2000W.
Standard version
Phasing of the ignition voltage: 60 - 90°el and 240 - 270°el
Max. permitted casing temperature: 105 °C
Screw terminals: 0.75 - 2.5 mm²
Fastening: male nipple with pre-assembled washer and nut
For luminaries of protection class I and II
Voltage AC: 380 - 415 V
Frequency: 50 - 60 Hz
Max. lamp current: 12 A
Internal loss: < 5 W
Inherent heating: < 32 K
Ignition voltage: 4 - 5 kV
Load capacity: 20 - 2000 pF
Switch-off time: -
Casing: d (50 mm), a (98 mm)
VS Z2000 S 400V IGNITOR 140497
Z 2000 S/400V Electronic superimposed ignitor for HI lamps.
Electronic superimposed ignitor for HI lamps up to 2000W.
Standard version
Phasing of the ignition voltage: 60 - 90°el and 240 - 270°el
Max. permitted casing temperature: 105 °C
Screw terminals: 0.75 - 2.5 mm²
Fastening: male nipple with pre-assembled washer and nut
For luminaries of protection class I and II
Voltage AC: 380 - 415 V
Frequency: 50 - 60 Hz
Max. lamp current: 12 A
Internal loss: < 5 W
Inherent heating: < 32 K
Ignition voltage: 4 - 5 kV
Load capacity: 20 - 2000 pF
Switch-off time: -
Casing: d (50 mm), a (98 mm)
VS Z2000 S 400V IGNITOR 140497
Z 2000 S/400V Electronic superimposed ignitor for HI lamps.
Electronic superimposed ignitor for HI lamps up to 2000W.
Standard version
Phasing of the ignition voltage: 60 - 90°el and 240 - 270°el
Max. permitted casing temperature: 105 °C
Screw terminals: 0.75 - 2.5 mm²
Fastening: male nipple with pre-assembled washer and nut
For luminaries of protection class I and II
Voltage AC: 380 - 415 V
Frequency: 50 - 60 Hz
Max. lamp current: 12 A
Internal loss: < 5 W
Inherent heating: < 32 K
Ignition voltage: 4 - 5 kV
Load capacity: 20 - 2000 pF
Switch-off time: -
Casing: d (50 mm), a (98 mm)
