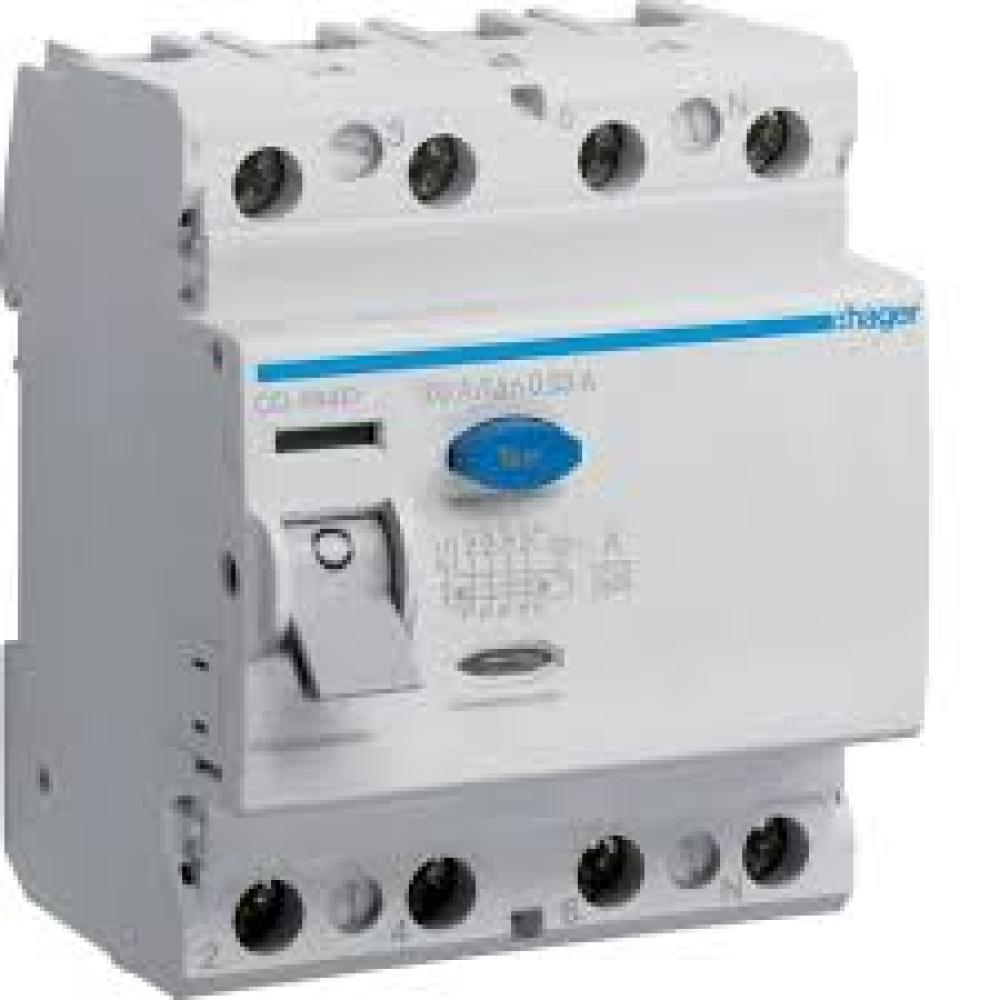

- Architecture Type of pole 3P+N Electric current Rated current 100 A Rated residual operating current Idn 30 mA Breaking and opening capacity Idm 1.50 kA Rated conditional short-circuit current Inc according to EN61008-1 6 kA Rated current -25°C 100 A Rated current at -20°C 100 A Rated current -15°C 100 A Rated current -10°C 100 A Rated current -5°C 100 A Rated current at 0°C 100 A Rated current 5°C 100 A Rated current 10°C 100 A Rated current 15°C 100 A Rated current at 20°C 100 A Rated current 25°C 100 A Rated current 30°C 100 A Rated current 35°C 100 A Rated current at 40°C 100 A Rated current at 45°C 99 A Rated current at 50°C 94 A Rated current 55°C 90 A Rated current 60°C 83 A Rated current 65°C 72 A Rated current 70°C 59 A Installation, mounting Nominal tightening torque top terminal 3.30 - 3.30 Nm Nominal tightening torque down terminal 3.30 - 3.30 Nm Type of top connection for modular devices Screw terminal Type of bottom connection for modular devices Screw terminal Nominal tightening torque 3.30 - 3.30 Nm Voltage Subject to technical modifications Rated operational voltage Ue 240 - 415 V Type voltage supply AC Rated insulation voltage Ui 500 V Rated impulse withstand voltage Uimp 4,000 V Max. operating voltage 415 V Frequency Frequency 50 - 50 Hz Capacity Number of modules 4 Compatibility Suitable for DIN Rail Yes Safety Residual current type AC Ingress Protection (IP) class IP20 Connection Cross-section of input and output with screws, for massive conductors 1 - 50 mm² Cross-section of input and output with screws, for flexible conductors 1 - 35 mm² Power Total power loss under IN 30.20 W Use conditions Max. Altitude 2,000 m Endurance Electric endurance in number of cycles 2,000 Number of mechanical operations 4,000 Connectivity Type of connection Screw terminal Top connection alignment for modular devices Aligned terminal Down connection alignment for modular devices Aligned terminal Dimensions Height 86 mm Width 70 mm Depth 70 mm
Available in Qatar, Oman, Muscat, Kuwait, UK, UAE, Dubai, Saudi Arabia, Japan, Malaysia, Singapore, Bahrain, and India.
