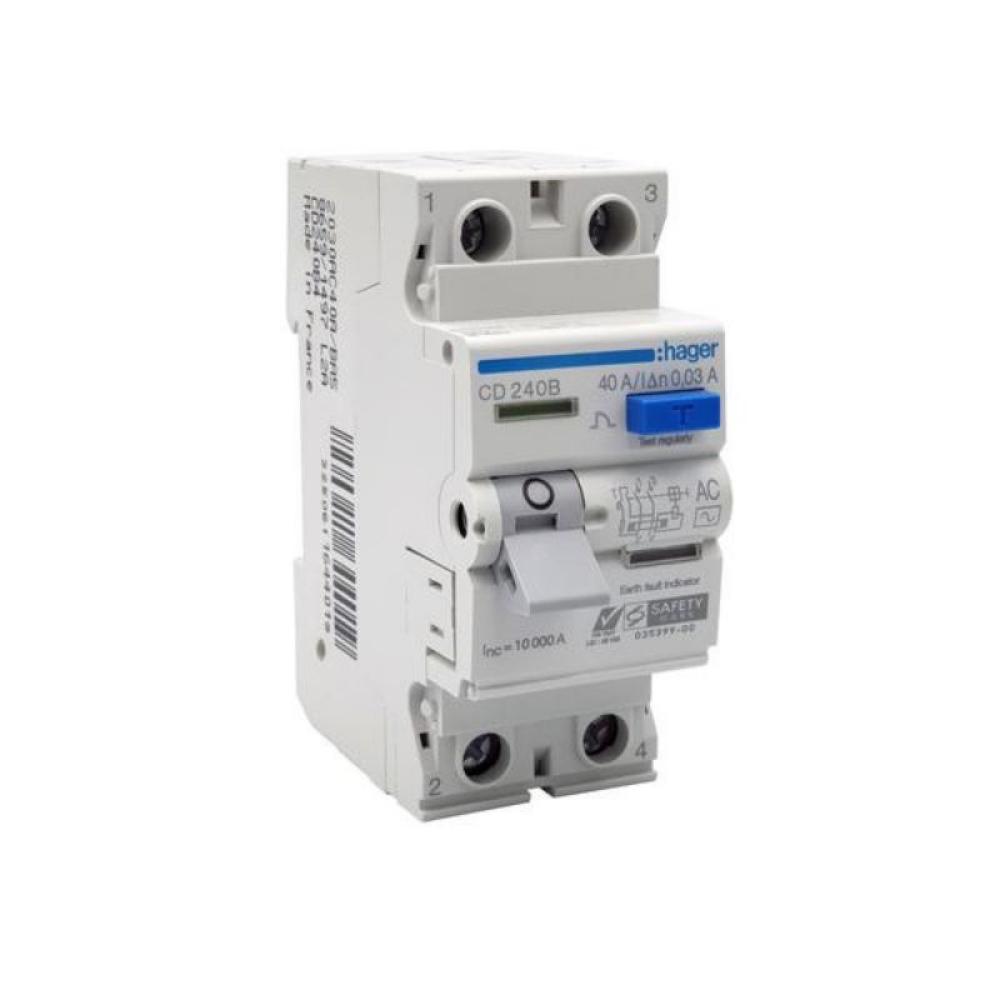

Technical Characteristics
Architecture:
-
Neutral position: Right
-
Number of poles: 2P
-
Fixing mode: DIN rail type O (symmetrical)
Functions:
-
Concurrently switching N-neutral: Yes (1)
Configuration:
-
Number of modules: 2
Main Electrical Features:
-
Rated operational voltage (Ue): 230V
-
Frequency: 50Hz
Voltage:
-
Rated insulation voltage: 500V
-
Rated impulse withstand voltage: 4000V
Electric Current:
-
Rated residual operating current: 30mA
-
Rated current: 63A
-
Withstand not tripping on 8–20 μs wave: 0.25kA
-
Breaking and opening capacity: 1.5kA
-
Rated conditional short-circuit current Inc (according to EN 61008-1): 6kA
Electric Current / Temperature (Rating Current at Various Temps):
-
−25°C: 63A
-
−20°C: 63A
-
−15°C: 63A
-
−10°C: 63A
-
−5°C: 63A
-
0°C: 63A
-
5°C: 63A
-
10°C: 63A
-
15°C: 63A
-
20°C: 63A
-
25°C: 63A
-
30°C: 63A
Power
- Total power loss under IN8.1 W
- Power loss per pole at In4.1 W
Tripping
- Protected against nuisance trippingNo
- Short-time delayed trippingNo
Endurance
- Electric endurance in number of cycles2000
- Number of mechanical operations4000
Installation, mounting
- Type of top connection for modular deviceswith screw
- Tightening torque2,8Nm
- Type of top rail clip for modular devicesNA
- Type of bottom rail clip for modular devicesmetallic
- Type of Bottom Connection for modular devicesBIconnect
- Top removability for modular devicesNo
- Bottom removability for modular devicesNo
Connection
- Connection cross-section at output with screw, for massive conductor1 / 25 mm²
- Connection cross-sect. flexible conductor16mm²
- Connection cross-sect. rigid cable25mm²
- Connection cross-section for rigid conductor, upstream terminals with screws1 / 25 mm²
- Connection cross-section of the access with screws, with flexible conductor1 / 16 mm²
- Connection cross section of access and exit with screws, for flexible conductor1 / 16 mm²
- Type of connectionwith screw
Standards
- Standard textIEC 61008-1 ; EN 61008-1
- European directive WEEEconcerned
Safety
- Residual current typeAC
- REACH conformNo
- RoHS conformYes
- Halogen freeNo
Use conditions
- Operating temperature-25…40 °C
- Degree of pollution according to IEC 60664 / IEC 60947-22
- Altitude2000 m
- Storage/transport temperature-55…70 °C
