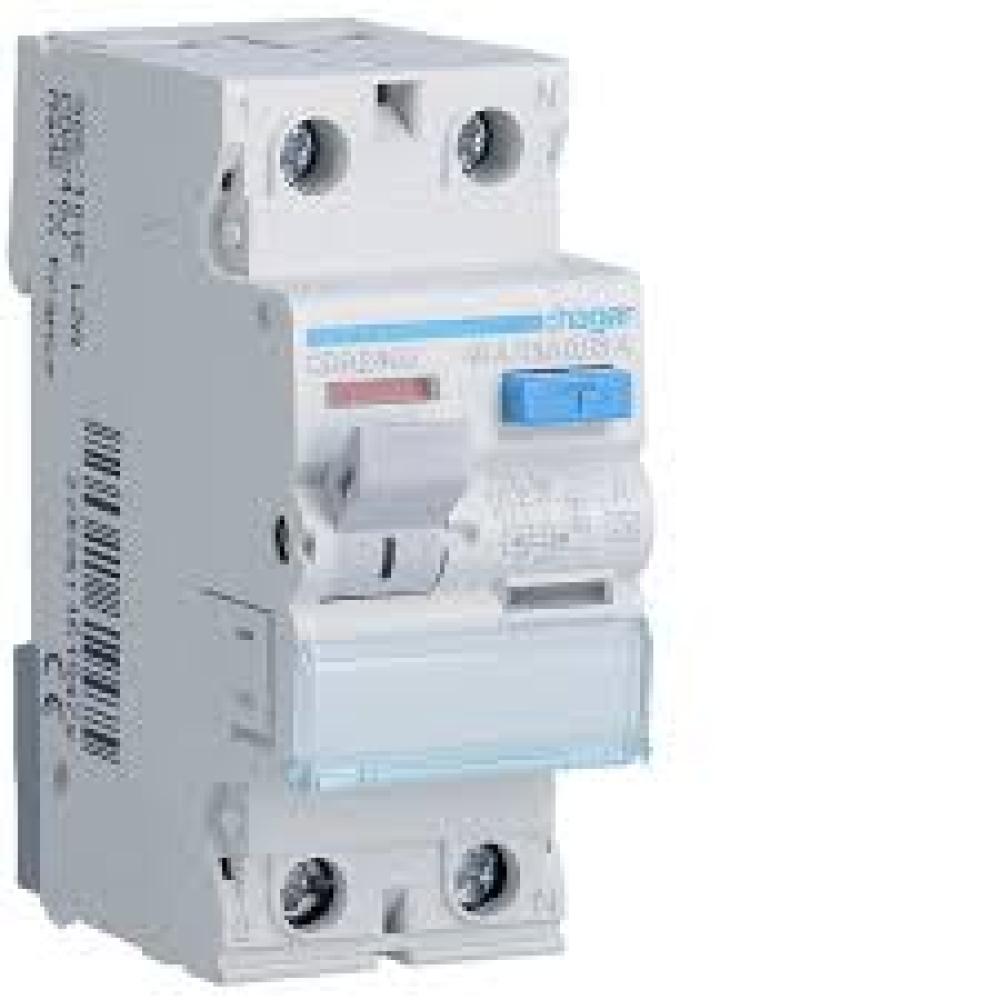

Technical properties
Architecture
- Neutral positionright
- Number of poles2 P
- Type of pole1P+N
Configuration
- Number of modules2
Main electrical features
- Rated operational voltage Ue230 V
- Type of supply voltageAC
- Frequency50 Hz
Voltage
- Rated insulation voltage500 V
- Max operating voltage253 V
- Rated impulse withstand voltage4000 V
Electric current
- Rated residual operating current30 mA
- Rated current40 A
- Withstand not tripping on 8-20 μs wave0.25 kA
- Breaking and opening capacity1.5 kA
- Rated conditional short-circuit current Inc according to EN 61008-16 kA
Electric current / temperature
- Rating current -25°C40 A
- Rating current -20°C40 A
- Rating current -15°C40 A
- Rating current -10°C40 A
- Rating current -5°C40 A
- Rating current 0°C40 A
- Rating current 5°C40 A
- Rating current 10°C40 A
- Rating current 15°C40 A
- Rating current 20°C40 A
- Rating current 25°C40 A
- Rating current 30°C40 A
- Rating current 35°C40 A
- Rating current 40°C40 A
- Rating current 45°C38 A
- Rating current 50°C37 A
- Rating current 55°C34 A
- Rating current 60°C30 A
- Rating current 65°C26 A
- Rating current 70°C21 A
Dimensions
- Depth of installed product70 mm
- Height of installed product83 mm
- Width of installed product35 mm
- Construction size (DIN 43880)1
Frequency
- Frequency50 Hz
Power
- Total power loss under IN6.24 W
Tripping
- Short-time delayed trippingNo
Endurance
- Electric endurance in number of cycles2000
- Number of mechanical operations4000
Installation, mounting
- Tightening torque2,8Nm
- Type of top rail clip for modular devicesNA
- Type of bottom rail clip for modular devicesmetallic
Connection
- Connection cross-sect. flexible conductor16mm²
- Connection cross-sect. rigid cable25mm²
- Type of connectionwith screw
Equipment
- Type selectiveNo
Standards
- Standard textIEC 61008-1 ; EN 61008-1
- European directive WEEEconcerned
Safety
- Residual current typeAC
- REACH conformNo
- RoHS conformYes
- Halogen freeNo
Use conditions
- Operating temperature-25…40 °C
- Degree of pollution according to IEC 60664 / IEC 60947-22
- Altitude2000 m
- Storage/transport temperature-55…70 °C
