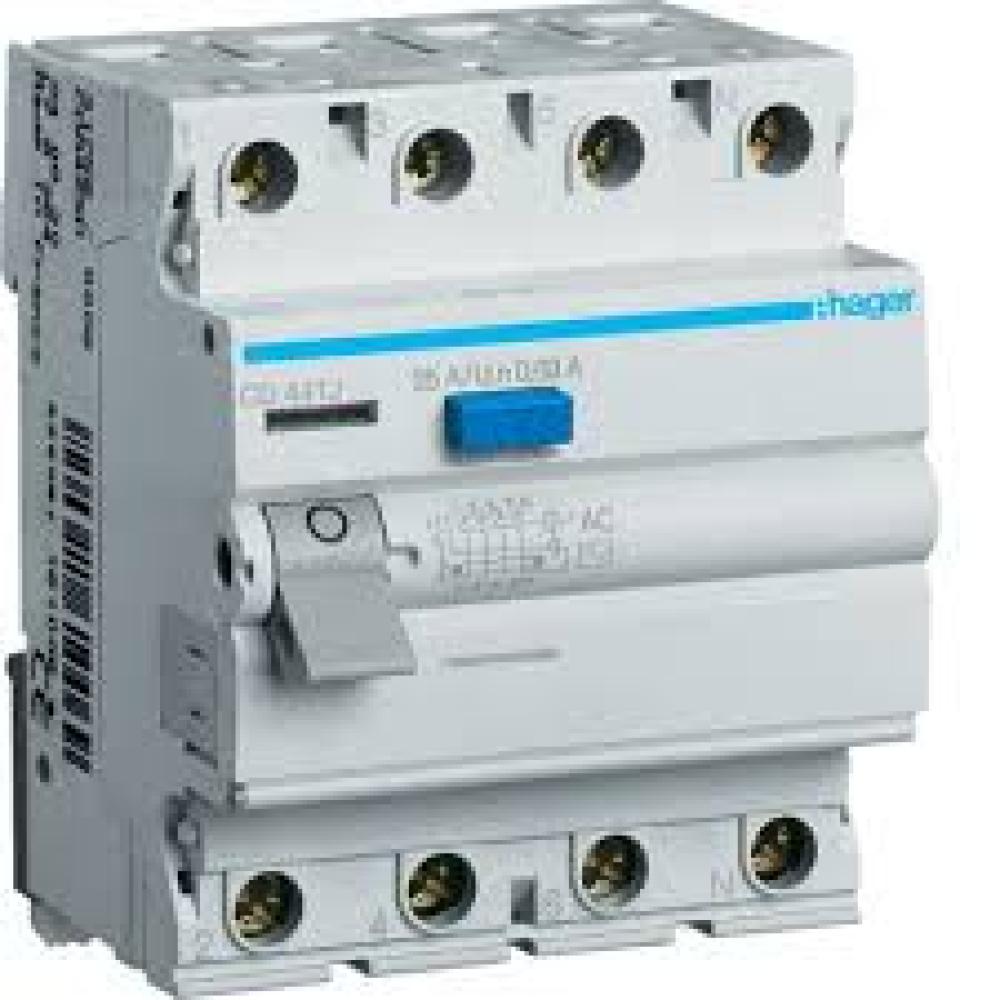

HAGER RCCB 4P 40A 30mA AC Class CD441J CD441Z

QAR 120.00

RCCB 4P 40A 30mA AC Class CD44

Variant: RCCB 4P 40A 30mA AC Class CD44

PRODUCT CODE : CD441J CD441Z Categories: HAGER

Description
Packaging Content

Description

Neutral position
right
Number of poles
4 P

Concurrently switching N-neutral
Yes

Number of modules
4

Rated operational voltage Ue
230 / 400 V
Frequency
50 Hz

Rated insulation voltage
500 V
Rated impulse withstand voltage
4000 V

Rated residual operating current
30 mA
Rated current
40 A
Withstand not tripping on 8-20 μs wave
0.25 kA
Breaking and opening capacity
1.5 kA
Rated conditional short-circuit current Inc according to EN 61008-1
6 kA

Rating current -25°C
40 A
Rating current -20°C
40 A
Rating current -15°C
40 A
Rating current -10°C
40 A
Rating current -5°C
40 A
Rating current 0°C
40 A
Rating current 5°C
40 A
Rating current 10°C
40 A
Rating current 15°C
40 A
Rating current 20°C
40 A
Rating current 25°C
40 A
Rating current 30°C
40 A
Rating current 35°C
40 A
Rating current 40°C
40 A
Rating current 45°C
40 A
Rating current 50°C
40 A
Rating current 55°C
40 A
Rating current 60°C
40 A
Rating current 65°C
40 A
Rating current 70°C
40 A

Depth of installed product
70 mm
Height of installed product
83 mm
Width of installed product
70 mm
Construction size (DIN 43880)
1

Frequency
50 Hz

Total power loss under IN
6.5 W
Power loss per pole at In
2.3 W

Protected against nuisance tripping
No
Short-time delayed tripping
No

Electric endurance in number of cycles
2000
Number of mechanical operations
4000

Type of top connection for modular devices
with screw
Tightening torque
2,8Nm
Type of top rail clip for modular devices
NA
Type of bottom rail clip for modular devices
metallic
Type of Bottom Connection for modular devices
BIconnect
Top removability for modular devices
No
Bottom removability for modular devices
No

Connection cross-section at output with screw, for massive conductor
1 / 25 mm²
Connection cross-sect. flexible conductor
16mm²
Connection cross-sect. rigid cable
25mm²
Connection cross-section for rigid conductor, upstream terminals with screws
1 / 25 mm²
Connection cross-section of the access with screws, with flexible conductor
1 / 16 mm²
Connection cross section of access and exit with screws, for flexible conductor
1 / 16 mm²
Type of connection
with screw

Standard text
IEC 61008-1 ; EN 61008-1
European directive WEEE
concerned

Residual current type
AC
REACH conform
No
RoHS conform
Yes
Halogen free
No

Operating temperature
-25…40 °C
Degree of pollution according to IEC 60664 / IEC 60947-2
2
Altitude
2000 m
Storage/transport temperature
-55…70 °C
