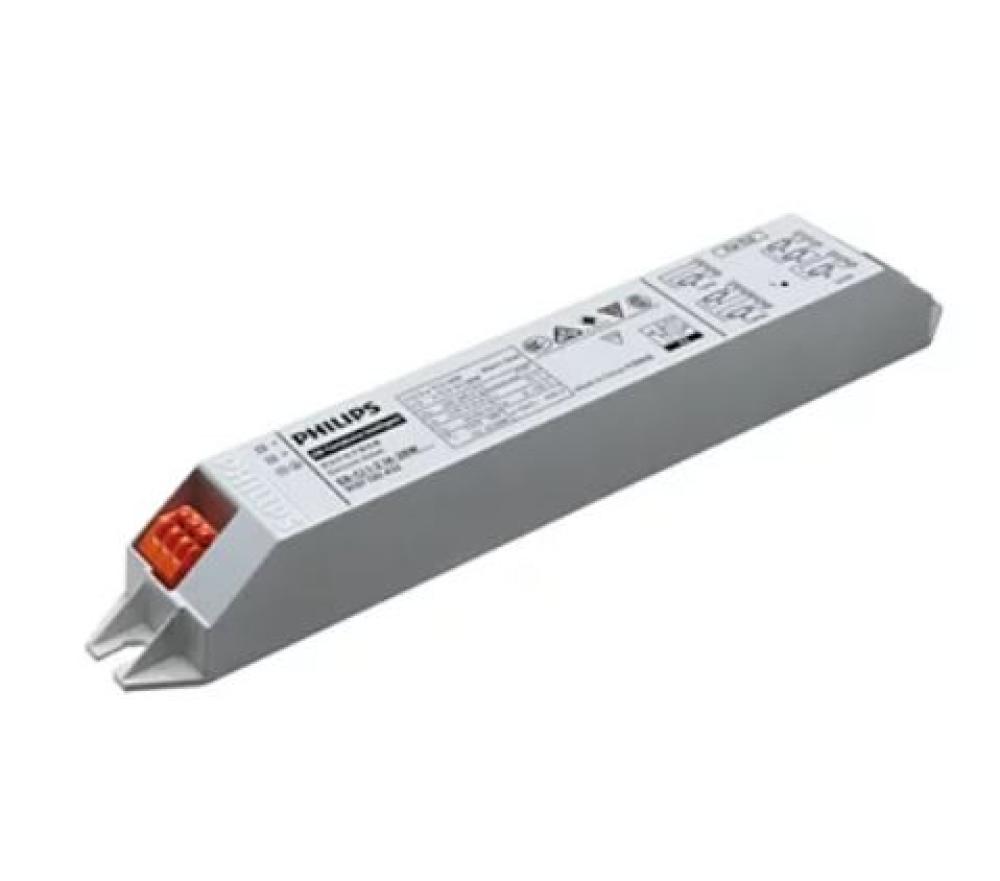

Philips EB-Ci 1-2 14-28W 220-240V 50/60 Hz TL5
Specifications
- Operating and Electrical
Input Voltage 220-240 VNumber of Products on MCB (16A Type B) (Max) 30Inrush Current Peak (Max) 17 AInput Frequency 50 or 60 HzEarth Leakage Current (Max) 0.5 mAInrush Current Width 0.224 ms- Product Data
Full product name EB-Ci 1-2 14-28W 220-240V 50/60 HzMaterial number (12NC) 913713043280Order code 913713043280EAN/UPC - Case 6947939133567Order product name EB-Ci 1-2 14-28W 220-240V 50/60 HzNumerator - Packs per outer box 30Numerator - Quantity Per Pack 1Full product code 694793913355000- Approval and Application
Approval Marks CB Certificate
CCC certificate
TISI marking
PSB certification
RCM compliance
SNI Certificate
CS Compliance
IRAM Compliance
Safety Standard IEC 61347-2-3,IEC 61347-1Ingress protection code IP20 [Finger-protected]Environmental Standard ISO 14001Energy Efficiency Index A2- Mechanical and Housing
Housing Material PlasticHousing L210x30x26mm- General Information
Number of Lamps 1-3 piece/unit- Wiring
Connector Type Output Terminals InsertConnector Type InsertConnector Type Input Terminals Insert- Temperature
T-Case Maximum (Max) 75 °CT-Case Lifetime (Max) 75 °C
Installation Diagrams
EB-Ci 1-2 14-28W 220-240V 50/60 Hz
EB-Ci TL5 220-240V
EB-Ci 1-2 36W / 1-4 18W 220-240V 50/60Hz
Specifications
- Operating and Electrical
Input Voltage 220-240 VNumber of Products on MCB (16A Type B) (Max) 30Inrush Current Peak (Max) 17 AInput Frequency 50 or 60 HzEarth Leakage Current (Max) 0.5 mAInrush Current Width 0.224 msFull product name EB-Ci 1-2 14-28W 220-240V 50/60 HzMaterial number (12NC) 913713043280Order code 913713043280EAN/UPC - Case 6947939133567Order product name EB-Ci 1-2 14-28W 220-240V 50/60 HzNumerator - Packs per outer box 30Numerator - Quantity Per Pack 1Full product code 694793913355000
