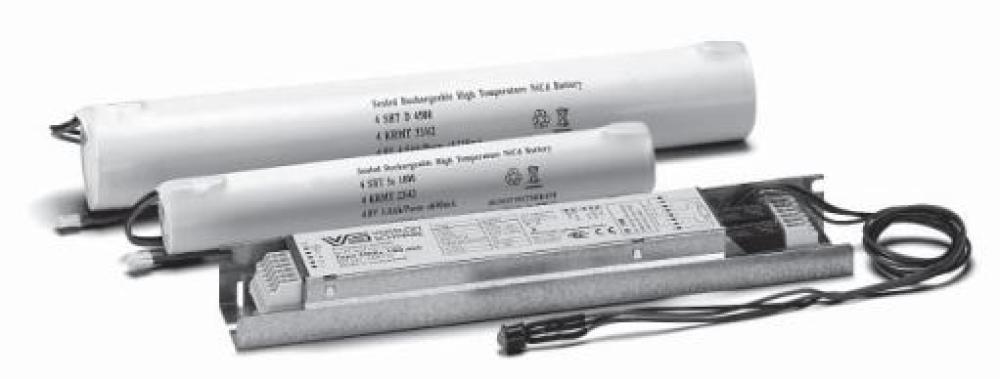

Vossloh Schwabe VS Emergency Lighting Modules For Fluorescent Lamps ANiCd 300 Battery for 3 Hours module/ China 188824
Emergency Lighting Modules 6 to 80 W
with Self-Diagnosis Function
EMXs – Emergency lighting modules
Type : EMXs 180.001
Ref. No. Module : 188793
Ref. No. Battery : 188824
Nominal operating battery period (hrs.) : 3
Rechargeable : 4.8V 4.5Ah NiCd
Dimensions LxD (Ø)of Battery mm : 1 / 240 x 33
Test function : automatic
Weight module g : 160
Weight battery g : 490
Packaging unit Pieces per box EM Module : 72
battery : 18
VS Emergency Lighting Modules For Fluorescent Lamps ANiCd 300 Battery for 3 Hours module/ China 188824
Emergency Lighting Modules 6 to 80 W with Self-Diagnosis Function EMXs – Emergency lighting modules For one-, two-, three- or four-lamp operation with standard and dimmable electronic or magnetic ballasts EB phase is switched off during emergency operation Short circuit protection RoHS-compliant (excluding rechargeable batteries) 5-pin technology and therefore EMC-compliant even during emergency operation Suitable for protection class I EN 61347-1, EN 61347-2-7 Suitable for systems in accordance with VDE 0108 or EN 50172 Not suitable for lamps with an integrated starter
Dimensions (LxWxH): 210x31.4x21.5 mm
Fixing hole distance: 205.5 mm
Nominal voltage: 230 V ±10%, 50–60 Hz
Ambient temperature ta: 0 to 50 °C
Unit: 25 pcs.
These VS emergency lighting modules include an
automatic self-diagnosis feature that performs
a two-minute function test of the device, the lamp
and the battery every seven days.
In addition, the operating period is tested every
12 months with subsequent battery reactivation.
VS Emergency Lighting Modules For Fluorescent Lamps ANiCd 300 Battery for 3 Hours module/ China 188824
Optical status display
• Red LED, flashing intermittently: defective lamp. The status display will be reset approx. one minute after the fault has been rectified.
• White LED, not illuminated: if connected to the power supply, the LED must turn green after a maximum of five minutes. If not, the device either has no voltage supply or the emergency lighting module is defective.
• Red LED, permanently flashing:
battery capacity is too low or the battery
supply line has been interrupted.
• Green LED: fully functional.
