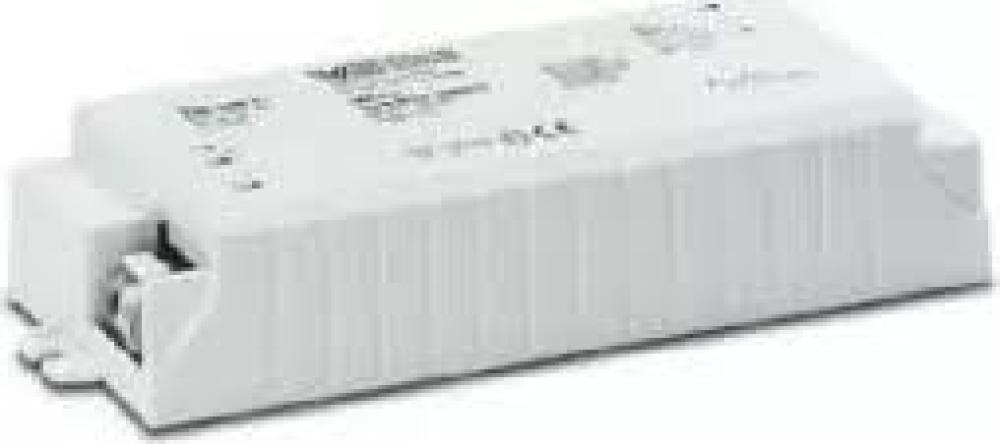

VS LED Driver ECXe1050.344 220-240V OT FIT 40 K25 Bulgaria 186841-1702
Dimensions
• Casing: K25
• Length: 97 mm
• Width: 43 mm
• Height: 29.5 mm
EasyLine DIP switch C-R5 Product features
• Compact casing shape Functions
• Selectable current output by dip-switch Electrical features
• Mains voltage: 220–240 V ±10%
• Mains frequency: 50–60 Hz
• Push-in terminals: rigid 0.5–1.5 mm² strand 0.75–1.5 mm²
• Power factor at full load: > 0.98
• Open circuit voltage (Umax.): 60 V
• Secondary side switching of LED modules is not allowed. Safety features
• Protection against transient main peaks up to 1 kV (between L and N)
• Electronic short-circuit protection
• Overload protection
• Overtemperature protection
• Protection against "no load" operation
• Degree of protection: IP20
• Protection class II
• SELV Packaging units
VS LED Driver ECXe1050.344 220-240V OT FIT 40 K25 Bulgaria 186841-1702
Product features
• Compact casing shape Functions
• Selectable current output by dip-switch Electrical features
• Mains voltage: 220–240 V ±10%
• Mains frequency: 50–60 Hz
• Push-in terminals: rigid 0.5–1.5 mm² strand 0.75–1.5 mm²
• Power factor at full load: > 0.98
• Open circuit voltage (Umax.): 60 V
• Secondary side switching of LED modules
is not allowed.
VS LED Driver ECXe1050.344 220-240V OT FIT 40 K25 Bulgaria 186841-1702
Typical Applications Built-in in compact luminaires for
• Shop lighting
• Downlights
• Panels
