VS Z400 S IGNITOR 140427

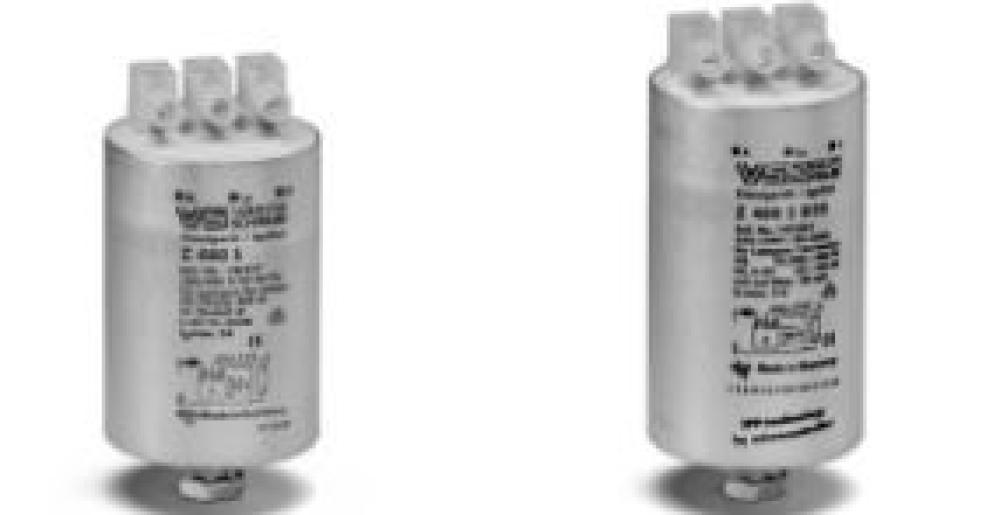

Vossloh Schwabe Z400 Electronic Superimposed Ignitor for HS and HI Lamps.
Electronic superimposed ignitor for HS 70…400 W and HI 35 to 400 W lamps.
Standard version or with automatic switch-off
For high pressure sodium lamps (HS) and metal halide lamps (HI)
Phasing of the ignition voltage: 60 - 90°el and 240 - 270°el
Max. permitted casing temperature: 105 °C
Fastening: male nipple with pre-assembled washer and nut
For luminaries of protection class I and II
Casing: Aluminium (Al) with screw terminals: 0.75 - 4 mm²
Voltage AC: 220 - 240 V
Frequency: 50 - 60 Hz
Max. lamp current: 5 A
Internal loss: < 3 W
Inherent heating: < 25 K
Ignition voltage: 4 - 5 kV
Load capacity: 20 - 100 pF
Switch-off time: -
Casing: d (45 mm), a (76 mm)
