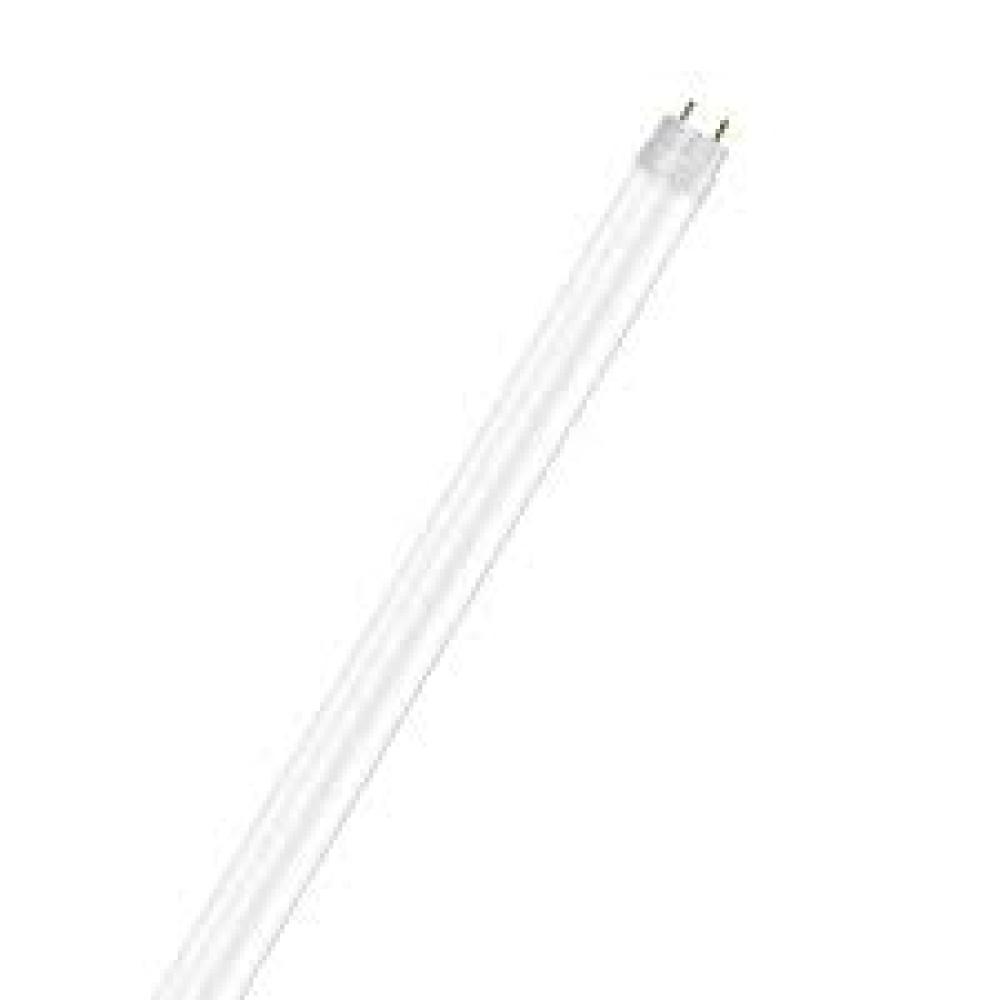

SubstiTUBE® IPS LED T8 LAMPS FROSTED GLASS WITH SHATTER-RESISTANT PET COATING, IPS, DIMMABLE

Benefits and Features

— DLC listing allows for rebates in areas where applicable,

saving on overall project cost

— Optimized glass optics with shatter-resistant PET coating

— Greater than 145 system LPW

— CRI >80

— Offered in 10 watts

— Available beam angle: 220°

— Light emitting angle: 340°

— Energy savings up to 44%

Electrical

— Compatible with instant start and select programmed

rapid start electronic T8 ballasts with input voltage of

120-277V and 347V

— 0-10V dimmable with compatible 0-10V dimming ballast*

— Power Factor >90%

— THD <20%

Rated Life

— 50,000 hours (L70)

Warranty

— 5-year limited lamp warranty (24/7 operation)

— NLB Trusted Warranty Program

Ambient Operating Range

— -4°F to +104°F (-20°C to +40°C)

Certifications and Listings

— cULus 1993

— RoHS

— FCC*

— Lead Free

— Mercury Free

— DLC 5.1

— NSF Listed: NSF/ANSI

Standard 2 – Food

Equipment

Wattage Comparison

Traditional

Source

Traditional

System Wattage

LED System

Wattage

Energy

Savings

4ft 32W T8 w/QHE 2X32T8/UNV ISN-SC 55W 26W 53%

Installation

— Please refer to the Installation manual included inside the

packaging and the applications information listed below for

more information (G13 medium bi-pin base).

*FCC Title 47 CFR, Part 18 Non-Consumer

*Limited stock dimmable product
